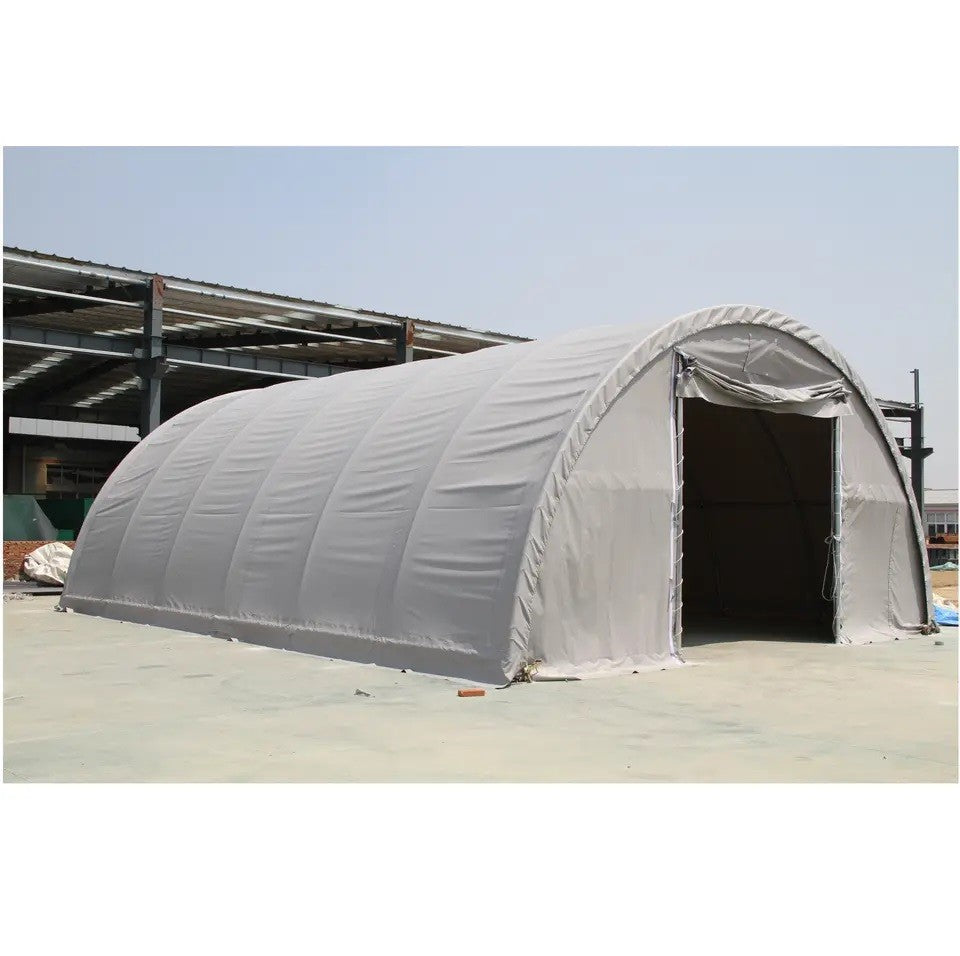

9x12 m Semi-round Hall - 110m2 - gray

HALE SEMI-ROUND TENTS in gray 720g/m2 FIREPROOF PVC

Possibilities of use
Creation of spaces for storage and work.
Safe storage of industrial products and materials sensitive to water.
Protection for large vehicle parking , such as: trucks, vans, motorhomes, caravans, minibuses, yachts, boats, etc.
Shelter for animals or for their food, grain barn, hay, wood, in agriculture or forestry.
Workshop or production space.
Water-resistant covering in areas under construction.
Exhibition or commercial space, resistant to wind, rain and snow, bad weather.
Suitable for temporary or long-term use.

Static calculation
Statistics are required for submitting information to public authorities.
Very stable: the static calculation for this tent has been certified by German engineers.
The following loads are covered if this tent is set up according to the static calculation manual.
Up to a wind force of 10 BFT /storm.
Approx. 30 cm of fresh snow (approx. 60kg/m2). In any case, it is recommended to promptly remove the snow from the roof of the tent.
An anchoring system for stability is included in the package, both for mounting on concrete and for mounting on the ground.

10-year warranty for the structure, against holes caused by corrosion.
5-year warranty for the correctly installed and used tarpaulin.
TARPAULIN
The tarpaulins are made of white FIREPROOF 720g/m2 PVC, a very resistant material, similar to truck tarpaulins .
5 year warranty for the PVC tarpaulin, correctly installed and used.
The tarpaulin made of very resistant fabric, double coated with PVC and 100% waterproof 2 is certified according to DIN EN ISO 527 norms.
9 times more resistant to tearing than the standard tarpaulin.
The PVC tarpaulin is fire resistant: certified for fire safety, according to DIN 4102 B1.
Certified for temperatures from -30 to +50 Celsius.
High UV resistance and very good UV protection.
100% waterproof.

Semi-round professional tents, for storage or industrial purposes with warranty and invoice. Robust galvanized steel structure with 76 mm 2 mm thick pipes. 100% waterproof PVC tarpaulin 720 g/m2.

Assembly
The detailed assembly instructions, the labeling of each component, allows assembly and assembly very quickly and easily, without having previous knowledge in the field.
Does not require a foundation.
Does not require project authorization, in most situations.
The necessary tools are the standard ones.
Dimensions
Width: 9.15 m
Length: 12.2 m
Area: 9.15 x 12.2 m -111.6 m2
Height at the top: 4.5 m
Door height: 3.5 m
Door width: 3.5 m
Distance between vertical arches: 2 m

Galvanized steel pipes:
Diameter 76mm
Thickness 2mm

Fire resistant and safe tarpaulin: You have purchased a tent with double tarpaulin covered with PVC, resistant and fire safe, material certified according to the standards:
GB -BS 5438:1989 2B
F 2 M1 /M2
D 2 DIN 4102 2 B1/B2
PL 2 EN 13501-1
NL, B, L 2 EN 13501-1
DK, S, N 2 SIS 650082
A 2 EN 13501-1
CH 2 BKZ 5.2
ES -EN13501-1
I -EN13501-1

The product is delivered from the warehouse our company from CARTISOARA /Fagaras.
